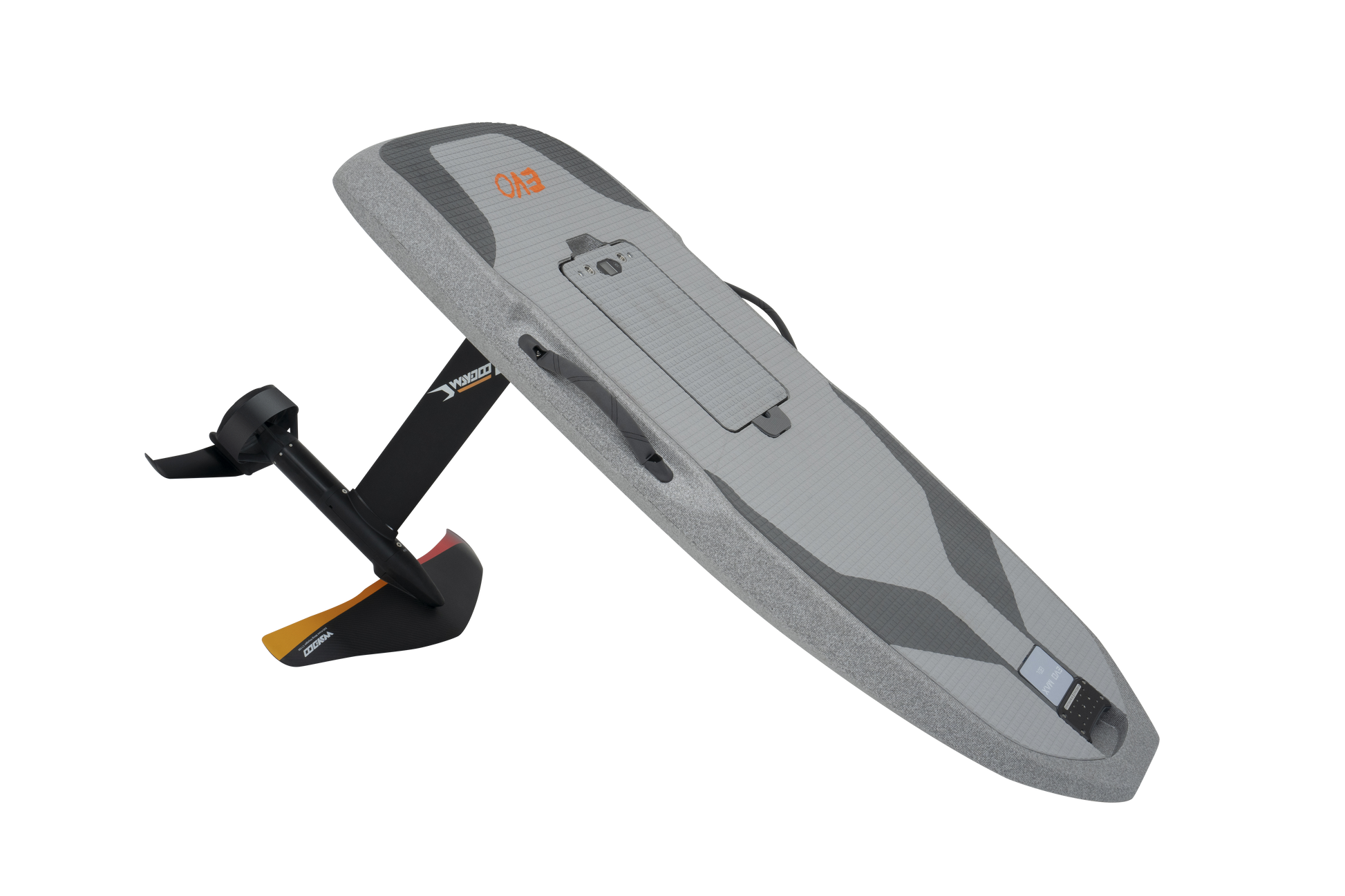

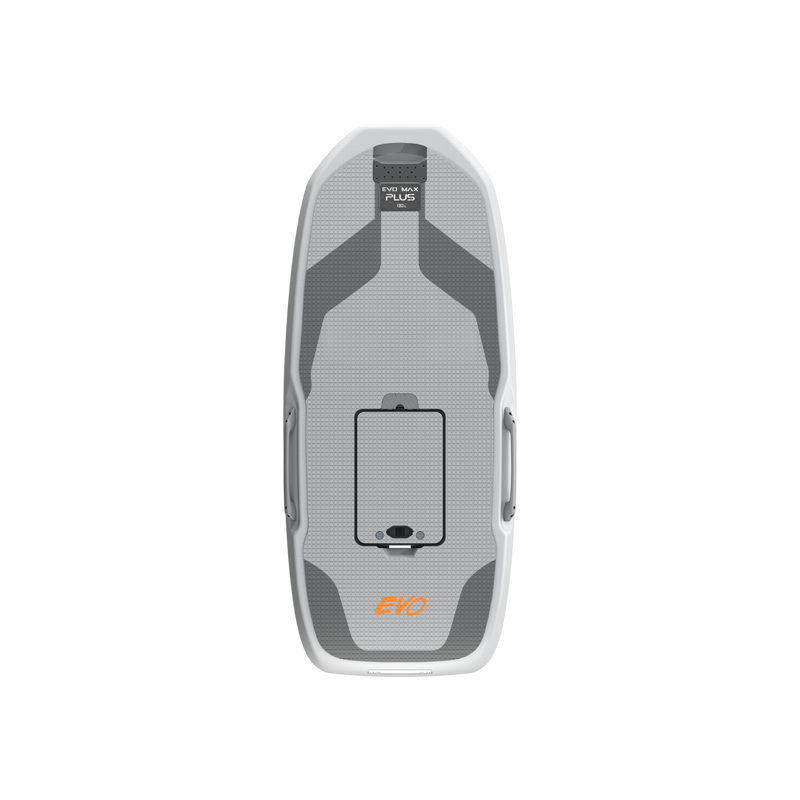

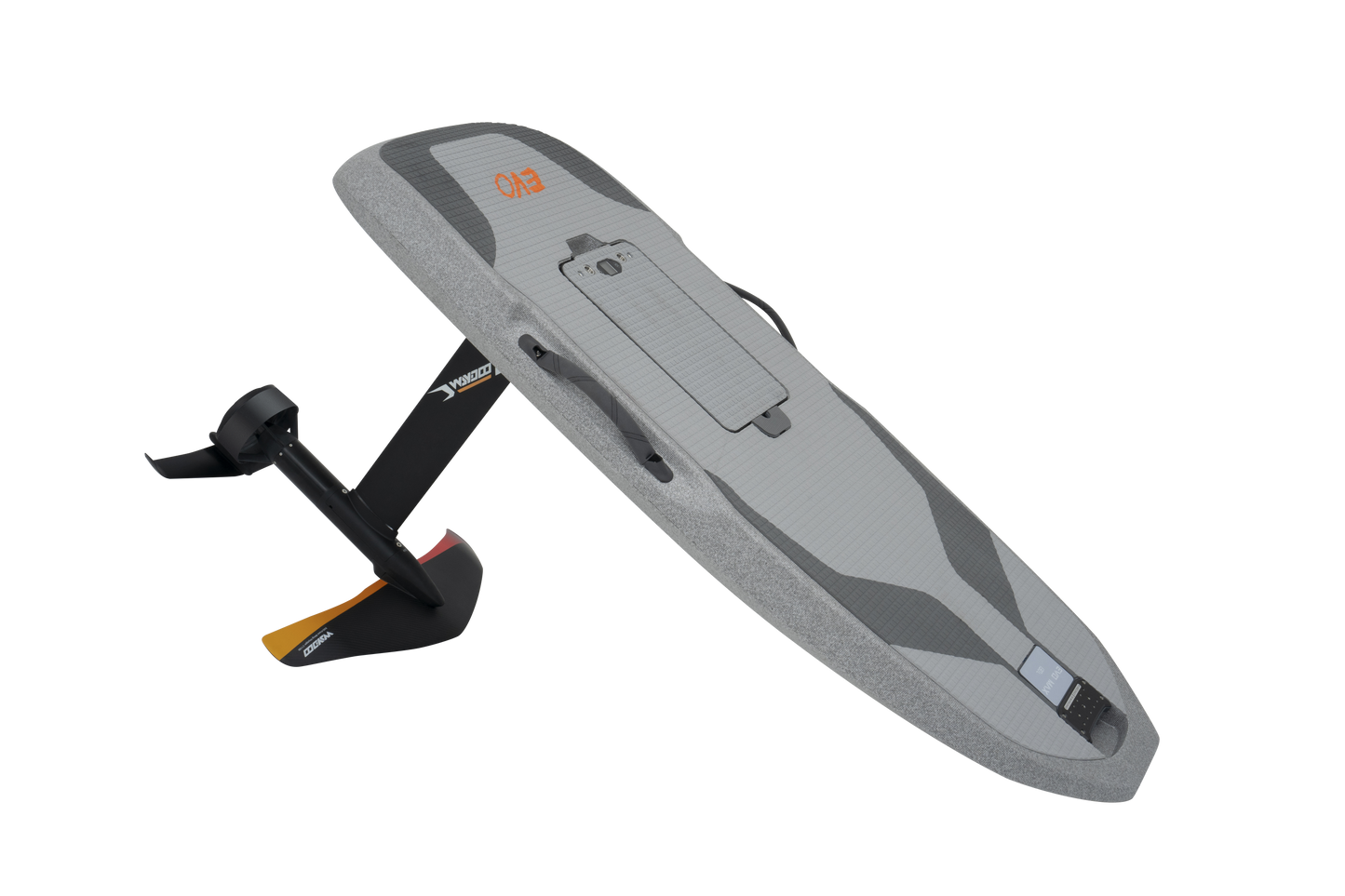

Flyer EVO Max Plus Efoil Package

The Waydoo Flyer EVO Max Plus is the absolute ultimate in stability, buoyancy, and family-friendly eFoiling. Designed with a massive 130L high-volume board, it represents the most stable, forgiving, and easy-to-learn platform available anywhere.

Category: Ultra-Stable

Massive 130L Volume Spine

Constructed from ultra-buoyant EPP molded over a full-length structural alloy spine. Specifically designed to stay completely stable on the water's surface, making stand-up taking off incredibly simple for riders of all skill levels.

130 LITERS

Board Volume

ALLOY SPINE

Core Stiffness

Plus-Tier Smart Takeoff Assistance

Actively monitors pitch angles to prevent nose-dives during takeoff, helping you find your balance on the foil instantly. Geo-fencing capabilities allow you to define safety perimeters from the app to protect beginner riders.

MAX PLUS SPECIFICATIONS

28.0 MPH

Top Speed

6000W

Power Output

120 MIN

Battery Life

286 LBS

Weight Limit

Component Specifications

Board Material Buoyant EPP with Alloy Spine

Front Wing Carbon Voyager 1500

Stabilizer Wing Gliding Tail 320

Mast Type 65cm Aluminum Mast

Flight Software Auto-Balance Flight Assist

Waydoo Flyer EVO Quick-Start & Assembly Guide

Assembly & Torque Specifications

Mast to Board / Propulsion: 2x M6x20 Bolts (5-10 N.m)
Front Wing Mount: 3x M6x35 Bolts (5-10 N.m)
Stabilizer Wing Mount: 2x M6x20 Bolts (5-10 N.m)
Hex Key Storage: Hidden inside the rubber plug in the board's battery compartment compartment!

Flight Control & Remote Safety

Trigger Safety Autolock: Remote throttle automatically locks if left idle for 7 seconds. Press & hold "-" button for 1 second to unlock.
Smart Flight Assist (Plus Models): Uses bottom altimeter sensors to auto-stabilize. Toggle in remote menu to select Low, Medium, or High altitudes.
LCD Dashboard Info: Displays real-time speed, remote/battery charge, GPS strength, and inclination angle (tilt degree).

Smart Powerflight Battery Care

Power On/Off: Tap once with the magnetic wrist-strap key for 3 seconds. Keep magnet close (within 1cm) until progress bar completes.
Rotary Lock Safety: Turn rotary locks 90° clockwise. Operating the battery un-locked causes seawater entry, electrical corrosion, and terminal damage.
Storage & Temperature: For storage >1 month, maintain at 40-60% charge. Charging will not start below 10°C (50°F) or above 45°C (113°F).

Post-Ride Maintenance & Care

ESC Cooling Cabin: Rinse with clean fresh water after each use to prevent salt or shellfish corrosion.
DC Ports & Terminals: Check monthly. Use an alcohol cotton swab to gently clean positive and negative terminals to prevent oxidation.
Ocean Rinsing: Clean all components with fresh water for 1 minute post-ride. Store in dry, cool conditions away from direct sunlight.
