Flyer EVO Master Plus Efoil Package - The Ultimate Performance Efoil

Flyer EVO Master Plus Efoil Package - The Ultimate Performance Efoil

$8,999.00 USD
$8,999.00 USD
Sale Sold out
EVO Front Wing (Wing)

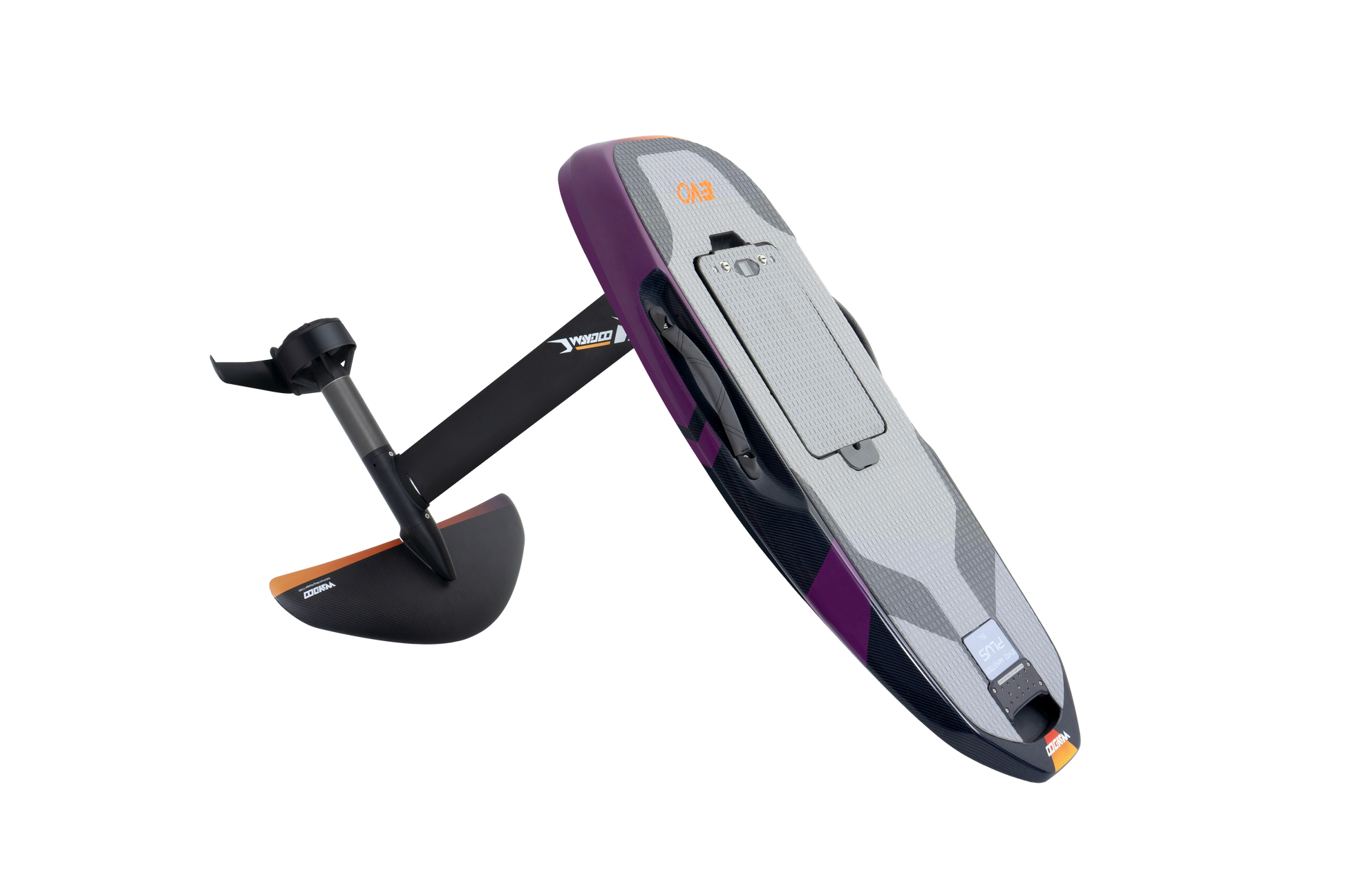

The Waydoo Flyer EVO Master Plus is the flagship, high-performance masterpiece of the Flyer EVO family. Engineered specifically for professional riders, thrill-seekers, and advanced eFoil athletes who demand maximum responsiveness, radical carving, and absolute precision.

Category: Carbon-Kevlar Performance

Military Kevlar Composite

Crafted from authentic, military-grade carbon-kevlar composites. Delivers an unmatched stiffness-to-weight ratio with zero-flex performance, transmitting 100% of your body inputs directly to the mast for elite carving precision.

75 LITERS
Board Volume
ZERO-FLEX
Carbon-Kevlar

Sleek Agility & Smart Flight Assist

A low 75L profile allows the board to sink slightly before flight, facilitating surfboard-style launches. Smart onboard sensors record precise carving speed, angles, and power metrics, helping you analyze and optimize every glide.

MASTER PLUS SPECIFICATIONS
32.0 MPH
Top Speed
6000W
Power Output
120 MIN
Battery Life
220 LBS
Weight Limit
Component Specifications
Board Material Military Carbon-Kevlar
Front Wing Carbon Voyager 1300
Stabilizer Wing Gliding Tail 320
Mast Type 75cm Carbon Fiber Mast
Flight Software Telemetry Recording Assist

Waydoo Flyer EVO Quick-Start & Assembly Guide

Assembly & Torque Specifications

  • Mast to Board / Propulsion: 2x M6x20 Bolts (5-10 N.m)
  • Front Wing Mount: 3x M6x35 Bolts (5-10 N.m)
  • Stabilizer Wing Mount: 2x M6x20 Bolts (5-10 N.m)
  • Hex Key Storage: Hidden inside the rubber plug in the board's battery compartment compartment!

Flight Control & Remote Safety

  • Trigger Safety Autolock: Remote throttle automatically locks if left idle for 7 seconds. Press & hold "-" button for 1 second to unlock.
  • Smart Flight Assist (Plus Models): Uses bottom altimeter sensors to auto-stabilize. Toggle in remote menu to select Low, Medium, or High altitudes.
  • LCD Dashboard Info: Displays real-time speed, remote/battery charge, GPS strength, and inclination angle (tilt degree).

Smart Powerflight Battery Care

  • Power On/Off: Tap once with the magnetic wrist-strap key for 3 seconds. Keep magnet close (within 1cm) until progress bar completes.
  • Rotary Lock Safety: Turn rotary locks 90° clockwise. Operating the battery un-locked causes seawater entry, electrical corrosion, and terminal damage.
  • Storage & Temperature: For storage >1 month, maintain at 40-60% charge. Charging will not start below 10°C (50°F) or above 45°C (113°F).

Post-Ride Maintenance & Care

  • ESC Cooling Cabin: Rinse with clean fresh water after each use to prevent salt or shellfish corrosion.
  • DC Ports & Terminals: Check monthly. Use an alcohol cotton swab to gently clean positive and negative terminals to prevent oxidation.
  • Ocean Rinsing: Clean all components with fresh water for 1 minute post-ride. Store in dry, cool conditions away from direct sunlight.
